High Temperature Insulation Ceramic Fiber Products For Kiln For Burning Bricks
Product Description

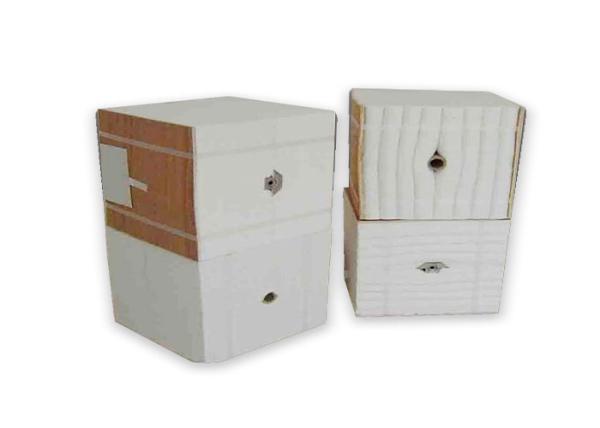

Refractory ceramic fiber module is a new refractory lining product in order for simplifying and speeding up the furnace construction and improving the lining integrity. The product,pure white, normal size, can be directly fixed on the anchor bolt of industrial furnace steel sheet, with a good fireproof and thermal insulation, which increase the furnace refractory insulation integrity and improve the furnace lining technology. Its classification temperature (From 1050°C to 1600°C).
Feature
1. Excellent chemical stability
2. Excellent thermal stability
3. Excellent flexibility, the module is in pre-compression state, after the lining masonry
4. The Expansion of modules enable seamless lining,fiber lining can be compensated to
improve
5. Insulation performance of Fiber lining, and the overall performance is good
6. Excellent thermal stability and thermal shock resistance
7. Ceramic fiber module can be installed quickly, and anchors set in the wall lining ,
which can lower the requiement of anchor material
Application
1. Furnace lining and insulation of furnace in Petrochemical industry
2. Furnace lining and insulation of furnace in Metallurgical industry
3. Furnace lining and insulation of furnace in Ceramics, glass and other builfinh
materials industry
4. Furnace lining and insulation of heat treatment furnace in heat treatment circle
5. Other industrial furnace lining
Technical Data
| Grade | Common | Standard | High Pour | High Alumina | Zirconium |
| Classification Temperature(℃) | 1050 | 1260 | 1260 | 1360 | 1430 |
| Working Temperature (℃)) | <1000 | 1000 | 1100 | 1200 | 1350 |
| Chemical composition (%) | AL2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 |
| Al2O3+SiO2 | 96 | 97 | 99 | 99 | - |
| Al2O3+SiO2+ZrO2 | - | - | - | - | 99 |
| ZrO2 | - | - | - | - | 15-17 |
| Fe2O3 | <1 | <1 | <1 | 0.2 | 0.2 |
| Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 |
| Density(kg/m3) | 200±15 | 220±15 | 220±15 | 220±15 | 300±15 |
| Size | 300×300×200mm, 300×300×250mm, 300×300×300mm,with the anchoring piece Other sizes and shapes on request |
